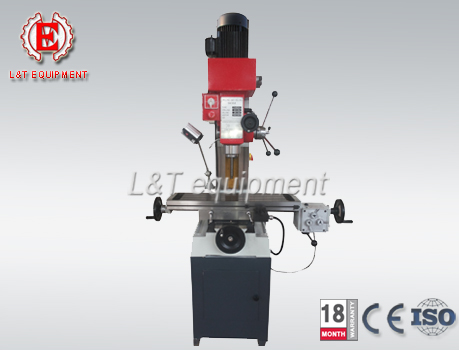

ZX50CF ZX50F Milling/Drilling Machine
ZX50CF / ZX50F Milling/Drilling Machine
Main Feature
Belt-Drive Milling Head
Dovetail Table Guideways Withstand Larger Overturning Moment
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
Work Table and Guideways Made by HT200-250 High Strength Cast Iron
Rotary Head
Digital Readout (optional)
Actuator (optional)
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
Good helper for your machining and maintanance work in your workshops
Specifications
|
Specifications |
ZX50CF Milling Machine |
ZX50F Milling Machine |
|
Max. Drilling Dia. (mm) |
50 |
50 |
|
Max. Horizontal Milling Dia. |
100 |
100 |
|
Max. Vertical Milling Dia. |
25 |
25 |
|
Max. Boring Dia. |
120 |
120 |
|
Max. Tapping Dia. |
M16 |
M16 |
|
Spindle Taper |
ISO30, MT4 |
ISO30, MT4 |
|
Spindle Speeds Range |
115-1750(8) |
230-1825(8) |
|
Spindle Travel |
120 |
120 |
|
Table Size (mm) |
800*240 |
800*240 |
|
Table Travel (mm) |
400*230*380 |
400*230*380 |
|
Main Motor Power (KW) |
0.85/1.5 |
0.85/1.5 |
|
N.W./G.W.(Kg) |
500/600 |
500/600 |
More Sample Picture
Manual Milling Machine
Aceessories
Optional Cutters
Product Usage
,
Wooden cases/ Pallets
Manual Milling Machine
