AL8 Series Magnification 22X 26X 28X 32X Auto level
Auto level AL8
Main Feature
CE ISO ROHS Certificate
3-Years Extended Warranty
This Instrument Is Mainly Suitable For High Precision Survey Of Engineering Inc
luding Construction Project, Mines, Road, Bridge, Etc. It Possesses Convenient
Operation, Clear Image, Water Proof Facility, Type X Air Or Magnetic Damping An
d Compensation Mechanism, And Precision Of Compensator.It Is Speedy And Reliabl
e As Well.
Specification
| Model | AL8-22 | AL8-26 | AL8-28 | AL8-32 |
| Magnification | 22X | 26X | 28X | 32X |
| Image | Erect | Erect | Erect | Erect |
| Objective Aperture | 36mm | 36mm | 36mm | 36mm |
| Field of View | 1¡ã20' | 1¡ã20' | 1¡ã20' | 1¡ã20' |
| Minimum Focusing Distance | 1m | 1m | 1m | 1m |
| Stadia Ratio | 100 | 100 | 100 | 100 |
| Setting Accuracy | 0.5¡¯¡¯ | 0.5¡¯¡¯ | 0.5¡¯¡¯ | 0.5¡¯¡¯ |
| Compensating Range | ¡À15' | ¡À15' | ¡À15' | ¡À15' |
| Standard Deviation for 1Km Double Run Levelling | ¡À3.0mm | ¡À3.0mm | ¡À2.5mm | ¡À2.5mm |
| Circular Level Sensitivity | 8¡¯/2mm | 8¡¯/2mm | 8¡¯/2mm | 8¡¯/2mm |
| Horizontal Circle Graduating | 1¡ã or 1gon | 1¡ã or 1gon | 1¡ã or 1gon | 1¡ã or 1gon |
| Net Weight | 1.8kg | 1.8kg | 1.8kg | 1.8kg |

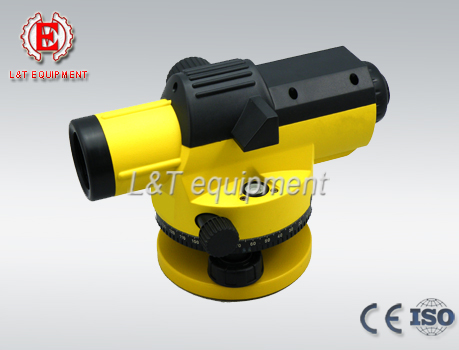

Sample Picture
