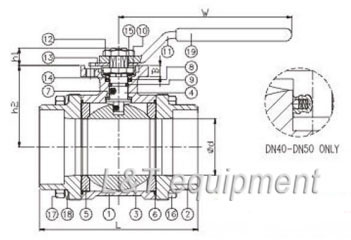

3-Pc Socket Weld Ball Valve
3-Pc Socket Weld Ball Valve
|
Material List | ||
|
Item |
Designation |
Material |
|
1 |
Plastic Cover |
Plastic |
|
2 |
Handle |
304 |
|
3 |
Gland Nut |
304 |
|
4 |
Stem Nut |
304 |
|
5 |
Thrust Washer |
304 |
|
6 |
Stem Packing |
PTFE |
|
7 |
Stem Seal |
PTFE |
|
8 |
Body Seal |
PTFE |
|
9 |
Cap |
CF8/CF8M |
|
10 |
Bolt |
304 |
|
11 |
Nut |
304 |
|
12 |
Thrust Washer |
304 |
|
13 |
Body |
CF8/CF8M |
|
14 |
Seat |
RPTFE |
|
15 |
Ball |
CF8M |
|
16 |
Stem |
304/316 |
|
17 |
Locking |
304 |
|

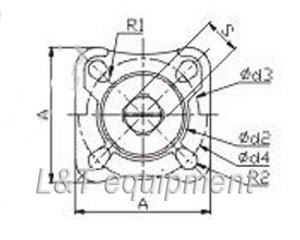

Dimension Table | |||||||||||
|
Item/Size |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
4" |
|
d |
12.5 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
76 |
94 |
|
D |
14.1 |
17.6 |
21.7 |
27.1 |
33.9 |
42.6 |
48.7 |
61.1 |
77 |
89.8 |
115.5 |
|
A |
10 |
10 |
10 |
13 |
13 |
13 |
13 |
16 |
16 |
16 |
19 |
|
L |
72 |
72 |
72 |
80 |
85 |
105 |
113 |
132 |
170 |
186 |
220 |
|
H |
48 |
48 |
50 |
52 |
65 |
70 |
85 |
93 |
116 |
125 |
180 |
|
W |
105 |
105 |
105 |
126 |
144 |
144 |
189 |
189 |
224 |
224 |
251 |
