Lathe & Milling Machine

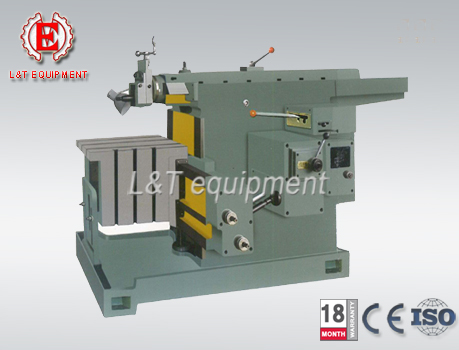

BC6050 Shaper
BC6050 Shaper
| Specifications | BC6050 | |
| Max Shapping Length(mm) | 500 | |
| Max. Range Of The Horizontal Movement Of The Table(mm) | 525 | |
| Max. Distance Between The Ram Bottom And Table (mm) | 370 | |
| Max. Length Of The Vertical Movement Of Table(mm) | 270 | |
| Dimensions Of Table Top(L*W)(mm) | 440*360 | |
| Max. Stoke Length Of The Toolhead(mm) | 120 | |
| Max. Swivel Angle Of The Toolhead(¡ã) | ¡À60¡ã | |
| Max. Section Of Tool(W*T)(mm) | 20*30 | |
| Number Of Ram Reciprocation Per Minute | 14-80 | |
| Range Of Table Feed: | Horizontal | 0.2-2.5 |
| Vertical | 0.08-1.00 | |
| Width Of The T-slot For Center Positioning(mm) | 18 | |
| Power Of The Main Motor(kw) | 3 | |
| Net Weight/Gross Weight (kg) | 1650/1760 | |
| Overall Dimensions(L*W*H)(mm) | 2000*1250*1400 | |
