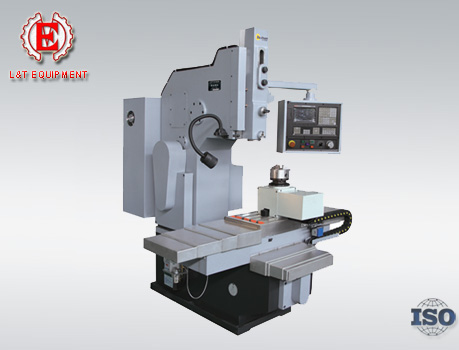

BK5018 CNC Vertical Slotting Machine
¡¤ CE Standard Electric Device ISO9001:2008 Certificate.
¡¤ CNC Control System, Save manpower ,
¡¤ Easy Operation. Good helper for your machining and maintanance work in your workshops.
|
Specification |
BK5108 CNC Slotting Machine |
|
Ram maximum slotting length |
180 mm |
|
Ram stroke adjustment |
80 mm |
|
Ram movement times |
46/60/90 N/Min |
|
Work table size |
600X320 mm |
|
Travel of table(X,Y) |
460X320 mm |
|
The knife head supporting hole axis to column forearm distance |
400 mm |
|
The knife head supporting hole end to table working distance |
480 mm |
|
X to the motor torque |
6 N.M |
|
Y to the motor torque |
6 N.M |
|
Fast moving |
5 X(m/min) |
|
5 Y(m/min) | |
|
Ball screw X |
FFZD3205-3/P4 |
|
Ball screw Y |
FFZD3205-3/P4 |
|
The main motor power |
1.5/2/2.2 Kw |
|
Machine weight |
1500 Kg |
* You can also choose optional accessories, please contact our sales for details.
Sample Picture
