PIPE FITTING

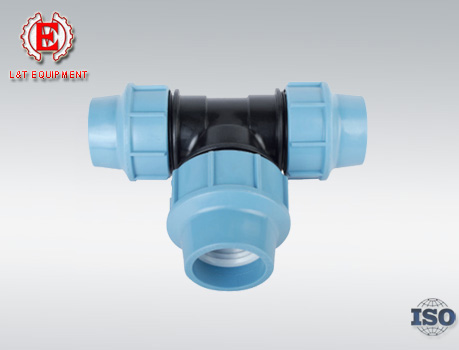

Increased Take Off 90 Degree Tee
Product Description
|
Suitable Applications |
Water Supply |
|
Material |
UPVC |
|
Size Range |
De 20,25,32,40 |
|
3/4",1",1-1/2",1-1/4" | |
|
Features |
Product design reference: GB/T 10002.1¡ª2006,GB/T 10002.2¡ª2003,GB/T 4219¡ª96,GB/T 10002.3¡ª96,GB/T 4220¡ª84,ISO 4422,ISO 4435,ISO727 |
| 90 Degree Tee with Increased Take Off | |||||||
| dxG | D | D1 | L | I | L1 | I1 | PN |
| 20 x 25 x 20 | 45 | 55 | 139 | 56 | 79 | 65 | 16 |
| 25 x 32 x 25 | 55 | 63 | 160 | 63 | 86 | 69 | 16 |
| 32 x 40 x 32 | 63 | 79 | 183 | 68 | 99 | 81 | 16 |
| 40 x 50 x 40 | 79 | 94 | 214 | 79 | 120 | 94 | 16 |
Application :
- Chemical process
- Metallurgy
- Lght & textile industry
- Construction for chemical medium
- Power & energy
- Municipal
- Pure water, seawater treatment
Advantages :
- Light weight and easy installation: 1/5-1/6 of the cast-iron pipe fittings to save more transport
- Costs and expenses (totally 30-40% lower than cast-iron pipe fittings)
- Strong Corrosion resistance for acid, alkali and chemical resistance to ensure the long serving
- Life (Reach 50 years under the normal working pressure)
- Recyclable , environmental friendly
- No vibration or noise
- Widely used in agriculture, Irrigation, industry etc. such as water supply, sewerage treatment, drainage, rainwater pipelines.
Packaging & Shipping
1. Normal carton packing
2. As per customer's request
